ROS2-FishBot建图与导航
固件烧录
相较于从源码编译固件后下载到开发板，使用官方提供的固件文件烧录更为方便。

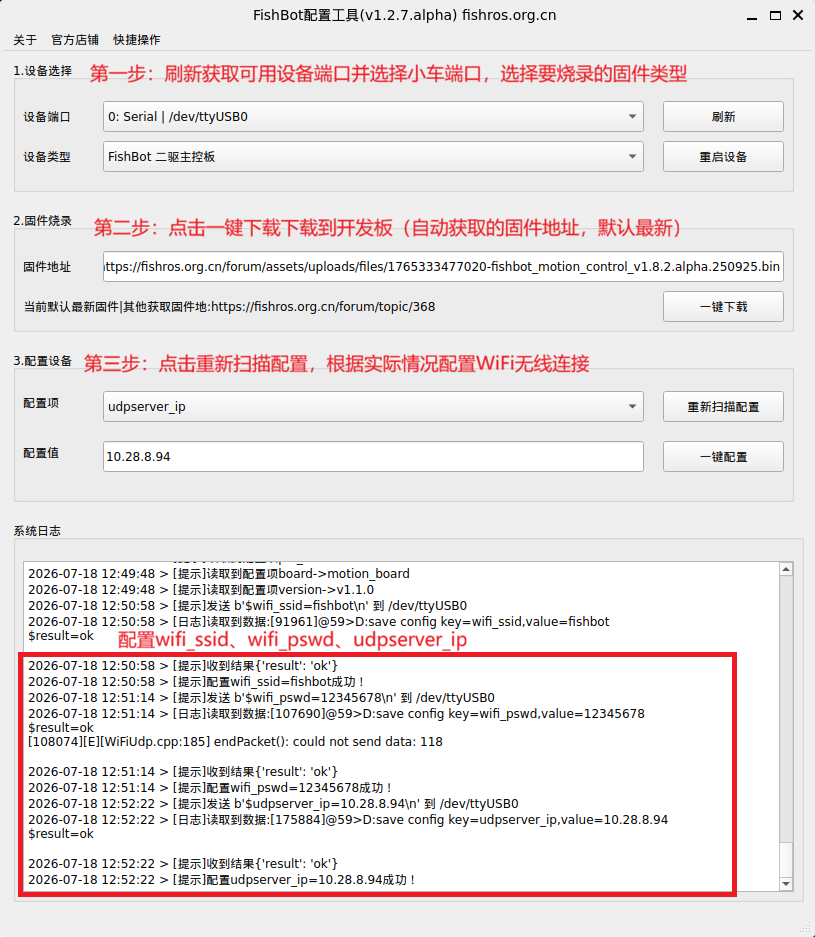

FishBot官方提供了固件下载工具fishbot_tool：
主控板烧录
USB连接电脑与主控板，Windows双击下载的fishbot_tool.v1.2.7.alpha.win.exe运行，Linux赋予执行权限后运行./fishbot_tool.v1.2.7.alpha.linux_amd64，界面如下：
插上OLED显示屏，运行Agent，点击开发板上的RST键重启，OLED显示屏上会显示无线连接信息。
mode:udp_client
time: 13:35:38
ip: 10.28.8.129
voltage: 11.97
linear: 0.00
angular: 0.00
上位机可见节点与话题：
ros2 node list
/fishbot_motion_control
ros2 topic list
/cmd_vel
/imu
/odom
/parameter_events
/rosout
雷达转接板烧录

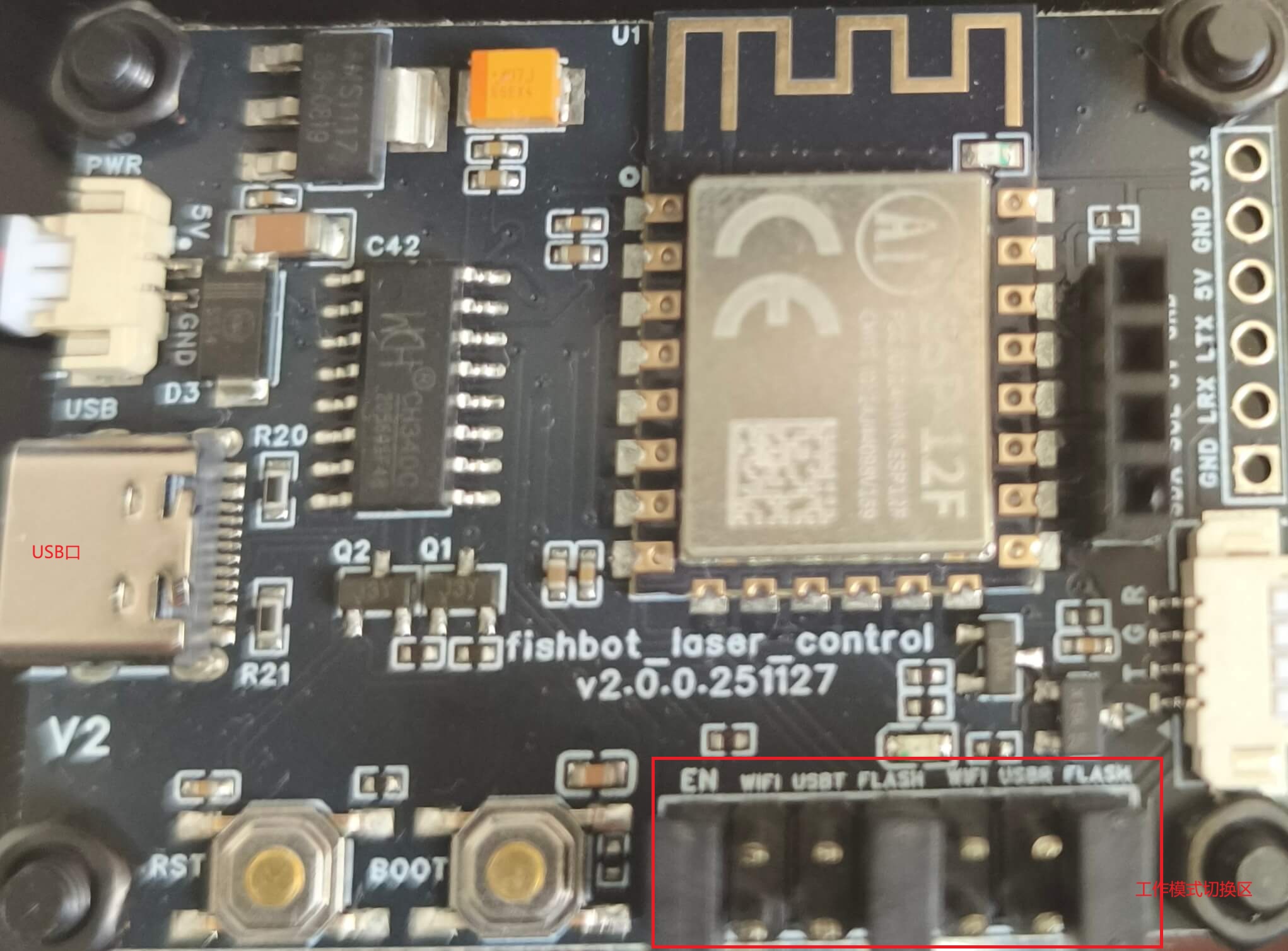

雷达转接板使用跳线帽切换工作模式：
跳线帽可看做一种可插拔的开关，用于断开和连接电路板上的两个触点
- Flash模式：用于烧录固件和参数配置，跳线帽插在
En、Flash、Flash三个位置 - Uart有线模式：用于有线连接，跳线帽插在
USBT、USBR两个位置 - WiFi无线模式：用于无线连接，跳线帽插在
EN、WIFI、WIFI三个位置
首先烧录固件：拔插跳线帽将雷达转接板设置为Flash模式，USB连接电脑与雷达转接板，启动fishbot_tool，设备类型选择FishBot 雷达转接板，选择设备端口，一键下载。
重新扫描配置，修改无线网络配置：wifi_ssid、wifi_pswd、server_ip，分别一键配置。（server_port默认8889）

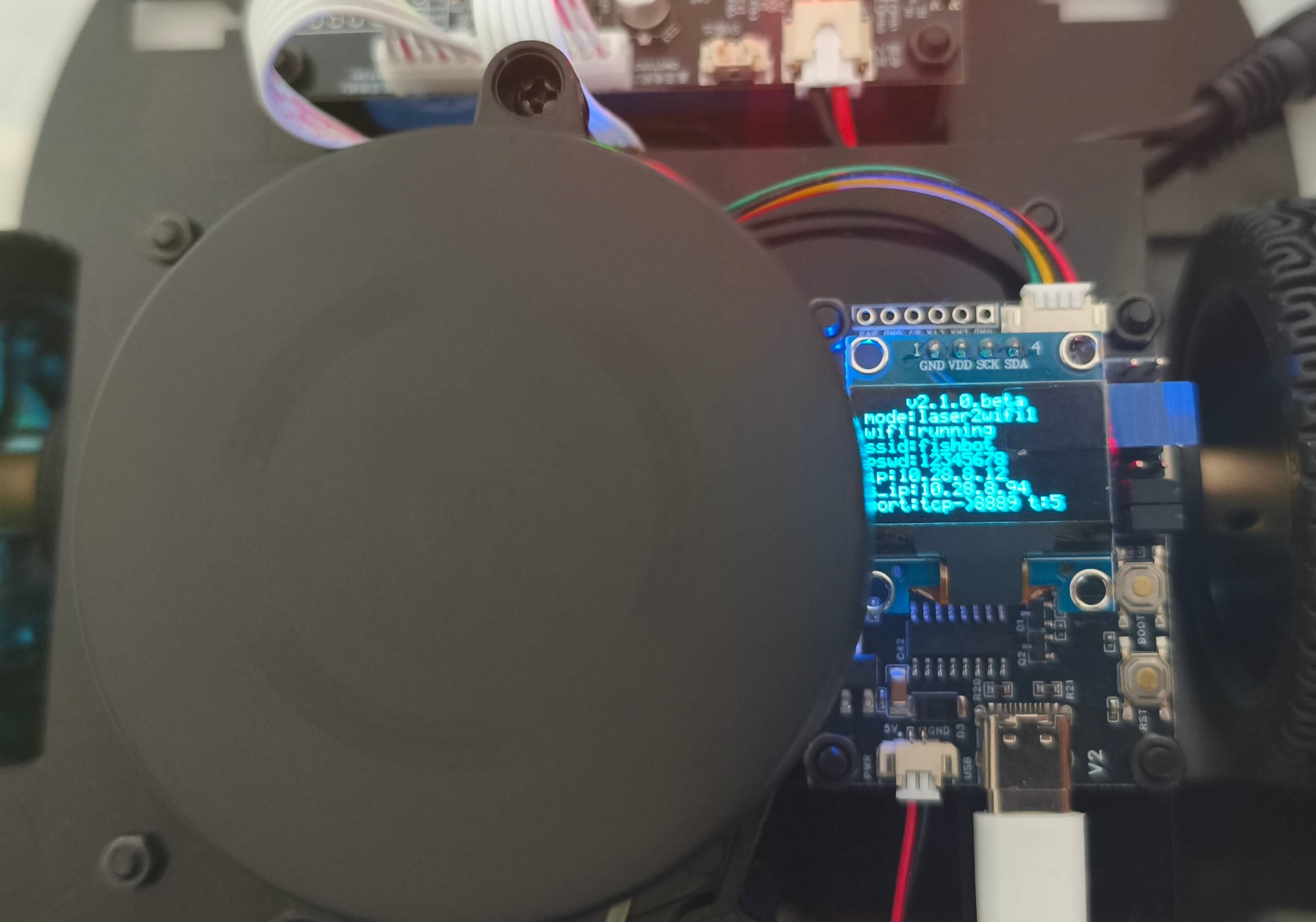

将雷达转接板设置为WiFi模式，OLED插在雷达转接板上，使用nc监听8889端口，点击开发板上的RST键重启，OLED显示屏上会显示无线连接信息，雷达会开始旋转。
# 只做接收测试使用，OLED状态会显示wifi:running
nc -l 8889
雷达驱动测试
有线驱动
使用雷达驱动ROS2功能包ydlidar_ros2：
首先创建工作空间并下载源码
mkdir -p ~/fishbot_ws/src
cd ~/fishbot_ws/src
git clone http://github.fishros.org/https://github.com/fishros/ydlidar_ros2 -b v1.0.0/fishbot
修改配置ydlidar_ros2/params/ydlidar.yaml中的设备端口
ydlidar_node:
ros__parameters:
port: /dev/ttyUSB0
frame_id: laser_link
ignore_array: ""
编译
cd ydlidar_ros2
colcon build
修改权限，设置环境。

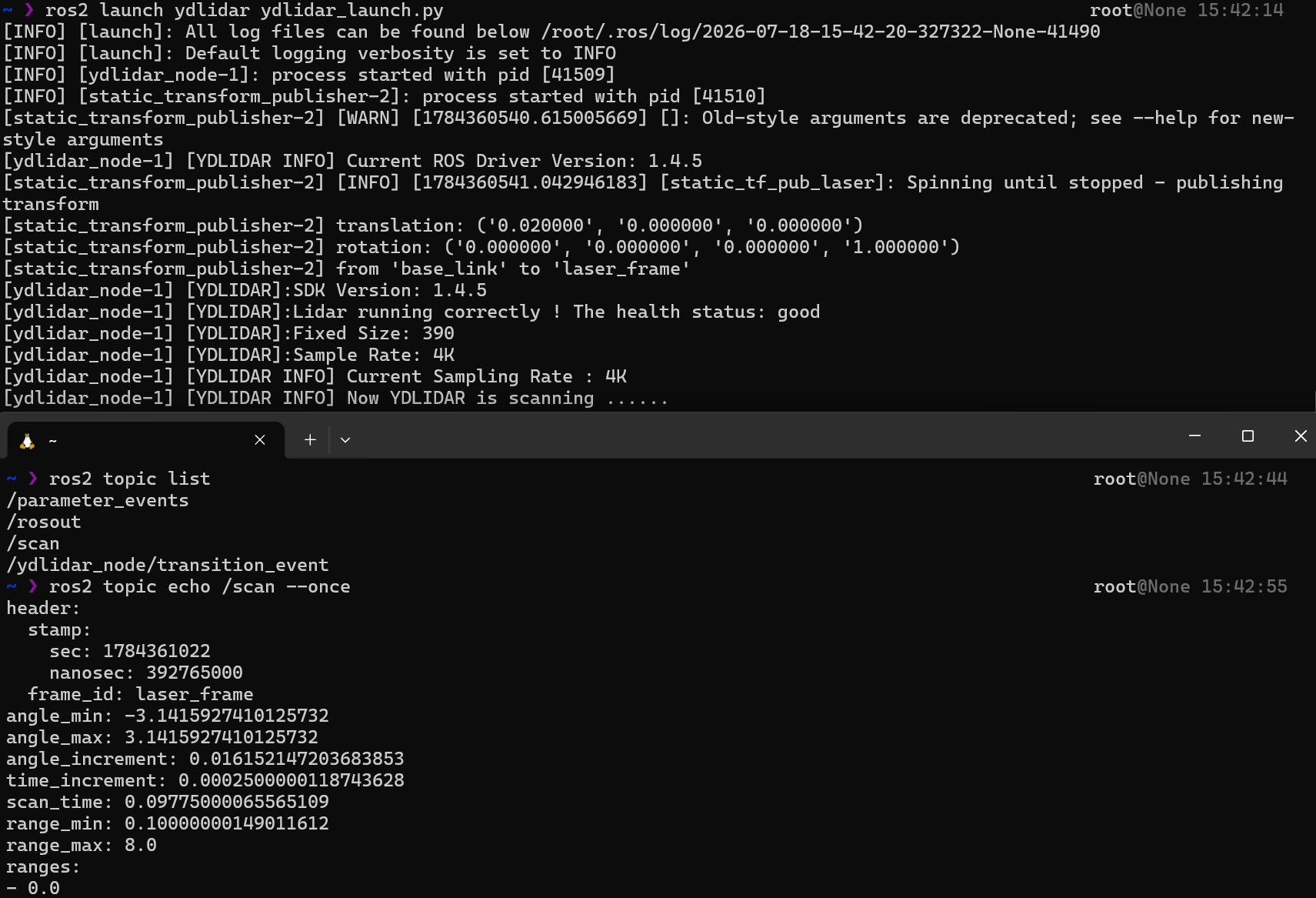

将雷达转接板设置为Uart有线模式，USB连接电脑与雷达转接板。运行
sudo chmod 666 /dev/ttyUSB0
source install/setup.bash
ros2 launch ydlidar ydlidar_launch.py
此时上位机中可以看到/scan话题

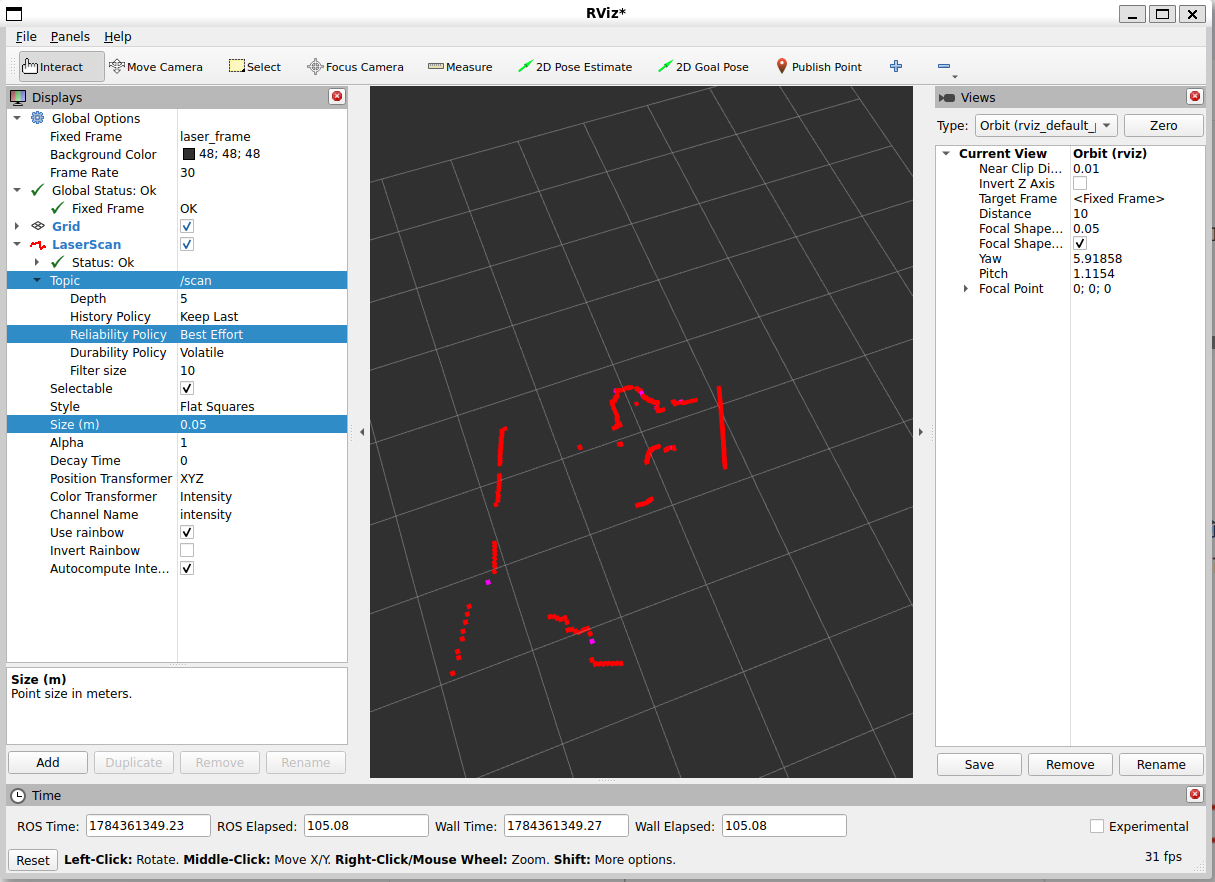

使用rviz2进行可视化
rviz2
添加LaserScan插件，选择话题/scan，将QoS设置从Reliable修改为Best Effort，即可看到雷达扫描数据。可适当增加Size参数
无线驱动
python脚本生成虚拟串口：
#!/usr/bin/env python3
import subprocess
import os
import pty
import socket
import select
import argparse
import subprocess
import time
class LaserScanRos2():
def __init__(self) -> None:
self.laser_pro = None
class SocketServer():
def __init__(self,lport=8889,uart_name="/tmp/fishbot_laser") -> None:
self.lport = lport
self.uart_name = uart_name
self.laser_ros2 = LaserScanRos2()
self.main()
def main(self):
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
s.bind(('0.0.0.0', self.lport))
s.listen(5)
master, slave = pty.openpty()
if os.path.exists(self.uart_name):
os.remove(self.uart_name)
os.symlink(os.ttyname(slave), self.uart_name)
print(f"UART2SOCKET:{self.lport}->{self.uart_name}")
mypoll = select.poll()
mypoll.register(master, select.POLLIN)
try:
while True:
print("Prepare to Accept connect!")
client, client_address = s.accept()
mypoll.register(client.fileno(), select.POLLIN)
print(s.fileno(), client, master)
print('PTY: Opened {} for {}:{}'.format(
os.ttyname(slave), '0.0.0.0', self.lport))
is_connect = True
try:
while is_connect:
fdlist = mypoll.poll(256)
for fd, event in fdlist:
data = os.read(fd, 256)
write_fd = client.fileno() if fd == master else master
if len(data) == 0:
is_connect = False
break
os.write(write_fd, data)
# print(fd, event, data)
except ConnectionResetError:
is_connect = False
print("远程被迫断开链接")
finally:
mypoll.unregister(client.fileno())
finally:
s.close()
os.close(master)
os.close(slave)
os.remove(self.uart_name)
def main():
SocketServer()
if __name__ == "__main__":
main()
以上脚本生成了一个虚拟串口/tmp/fishbot_laser，将8889端口的数据转发到该串口。
雷达数据→上位机8889端口→虚拟串口/tmp/fishbot_laser→ydlidar_ros2驱动→ROS2话题/scan
修改雷达转接板工作模式为WiFi无线模式，运行Python脚本。
python3 virt_serial.py
修改配置，重新编译，启动ydlidar_ros2驱动
ydlidar_node:
ros__parameters:
port: /tmp/fishbot_laser # 设置虚拟串口
frame_id: laser_link # 之后使用
ignore_array: ""
colcon build
source install/setup.bash
ros2 launch ydlidar ydlidar_launch.py
上位机中可见/scan话题。
ros2 topic list
/parameter_events
/rosout
/scan
/tf_static
/ydlidar_node/transition_event
建图
坐标系规定
REP105中规定了用于 ROS 的移动平台的坐标系的命名约定和语义含义。
REP105规定了坐标系规范：
map：世界固定全局坐标系，通常是静态的，表示世界的固定参考框架。odom：世界固定局部坐标系，里程计坐标系，表示机器人在一段时间内的运动估计，通常是动态的。base_link：机器人本体坐标系，作为传感器和执行器的父级。
它们间的TF变换树结构为
map -> odom -> base_link。
如果加上世界定位earth、传感器，TF变换树可扩展为
earth -> map -> odom -> base_link -> laser/imu/...。
map和odom都是世界固定的，它们间的区别是：
map无漂移但不连续，相较于odom更加稳定odom连续平滑但有漂移，相较于map更加实时平滑- 两者通过动态变换
map -> odom进行关联，通常由SLAM算法计算得到。
发布odomTF变换
创建工作空间和功能包
mkdir -p ~/fishbot_ws/src
cd ~/fishbot_ws/src
ros2 pkg create --build-type ament_cmake fishbot_bringup
touch fishbot_bringup/src/fishbot_bringup.cpp
修改CMakeLists.txt，添加依赖
cmake_minimum_required(VERSION 3.20)
project(fishbot_bringup)
if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
add_compile_options(-Wall -Wextra -Wpedantic)
endif()
# find dependencies
find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)
find_package(geometry_msgs REQUIRED)
find_package(nav_msgs REQUIRED)
find_package(tf2 REQUIRED)
find_package(tf2_ros REQUIRED)
set(dependencies
rclcpp
geometry_msgs
nav_msgs
tf2
tf2_ros
)
add_executable(fishbot_bringup src/fishbot_bringup.cpp)
target_include_directories(fishbot_bringup PUBLIC
$<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/include>
$<INSTALL_INTERFACE:include>)
target_compile_features(fishbot_bringup PUBLIC c_std_99 cxx_std_17) # Require C99 and C++17
ament_target_dependencies(fishbot_bringup
${dependencies}
)
install(TARGETS fishbot_bringup
DESTINATION lib/${PROJECT_NAME})
if(BUILD_TESTING)
find_package(ament_lint_auto REQUIRED)
# the following line skips the linter which checks for copyrights
# comment the line when a copyright and license is added to all source files
set(ament_cmake_copyright_FOUND TRUE)
# the following line skips cpplint (only works in a git repo)
# comment the line when this package is in a git repo and when
# a copyright and license is added to all source files
set(ament_cmake_cpplint_FOUND TRUE)
ament_lint_auto_find_test_dependencies()
endif()
ament_package()
编写代码fishbot_bringup/src/fishbot_bringup.cpp，发布odom->base_linkTF变换
#include <rclcpp/rclcpp.hpp>
#include <nav_msgs/msg/odometry.hpp>
#include <tf2/utils.h>
#include <tf2_ros/transform_broadcaster.h>
class TopicSubscribe01 : public rclcpp::Node
{
public:
TopicSubscribe01(std::string name) : Node(name)
{
// 创建一个订阅者，订阅"odom"话题的nav_msgs::msg::Odometry类型消息
odom_subscribe_ = this->create_subscription<nav_msgs::msg::Odometry>(
"odom", rclcpp::SensorDataQoS(),
std::bind(&TopicSubscribe01::odom_callback, this, std::placeholders::_1));
// 创建一个tf2_ros::TransformBroadcaster用于广播坐标变换
tf_broadcaster_ = std::make_unique<tf2_ros::TransformBroadcaster>(this);
}
private:
rclcpp::Subscription<nav_msgs::msg::Odometry>::SharedPtr odom_subscribe_;
std::unique_ptr<tf2_ros::TransformBroadcaster> tf_broadcaster_;
nav_msgs::msg::Odometry odom_msg_;
// 回调函数，处理接收到的odom消息
void odom_callback(const nav_msgs::msg::Odometry::SharedPtr msg)
{
(void)msg;
RCLCPP_INFO(this->get_logger(), "接收到里程计信息->底盘坐标系 tf :(%f,%f)",
msg->pose.pose.position.x, msg->pose.pose.position.y);
// 更新odom_msg_的姿态信息
odom_msg_.pose.pose.position.x = msg->pose.pose.position.x;
odom_msg_.pose.pose.position.y = msg->pose.pose.position.y;
odom_msg_.pose.pose.position.z = msg->pose.pose.position.z;
odom_msg_.pose.pose.orientation.x = msg->pose.pose.orientation.x;
odom_msg_.pose.pose.orientation.y = msg->pose.pose.orientation.y;
odom_msg_.pose.pose.orientation.z = msg->pose.pose.orientation.z;
odom_msg_.pose.pose.orientation.w = msg->pose.pose.orientation.w;
};
public:
// 发布坐标变换信息
void publish_tf()
{
geometry_msgs::msg::TransformStamped transform;
double seconds = this->now().seconds();
transform.header.stamp = rclcpp::Time(static_cast<uint64_t>(seconds * 1e9));
transform.header.frame_id = "odom";
transform.child_frame_id = "base_footprint";
transform.transform.translation.x = odom_msg_.pose.pose.position.x;
transform.transform.translation.y = odom_msg_.pose.pose.position.y;
transform.transform.translation.z = odom_msg_.pose.pose.position.z;
transform.transform.rotation.x = odom_msg_.pose.pose.orientation.x;
transform.transform.rotation.y = odom_msg_.pose.pose.orientation.y;
transform.transform.rotation.z = odom_msg_.pose.pose.orientation.z;
transform.transform.rotation.w = odom_msg_.pose.pose.orientation.w;
// 广播坐标变换信息
tf_broadcaster_->sendTransform(transform);
}
};
int main(int argc, char **argv)
{
// 初始化ROS节点
rclcpp::init(argc, argv);
// 创建一个TopicSubscribe01节点
auto node = std::make_shared<TopicSubscribe01>("fishbot_bringup");
// 设置循环频率
rclcpp::WallRate loop_rate(20.0);
while (rclcpp::ok())
{
// 处理回调函数
rclcpp::spin_some(node);
// 发布坐标变换信息
node->publish_tf();
// 控制循环频率
loop_rate.sleep();
}
// 关闭ROS节点
rclcpp::shutdown();
return 0;
}
以上代码创建了一个名为fishbot_bringup的ROS2节点，订阅了/odom话题，并将接收到的里程计信息发布为odom->base_footprint的TF变换。
base_footprint通常表示机器人与地面的接触平面，更接近机器人在地面上的实际位置，有助于避免碰撞。而在其他情况下，如控制机器人的运动，使用base_link可能更合适，因为它更直接地与机器人的物理结构相联系。
编译运行
cd ~/fishbot_ws
colcon build
source install/setup.bash
ros2 run fishbot_bringup fishbot_bringup

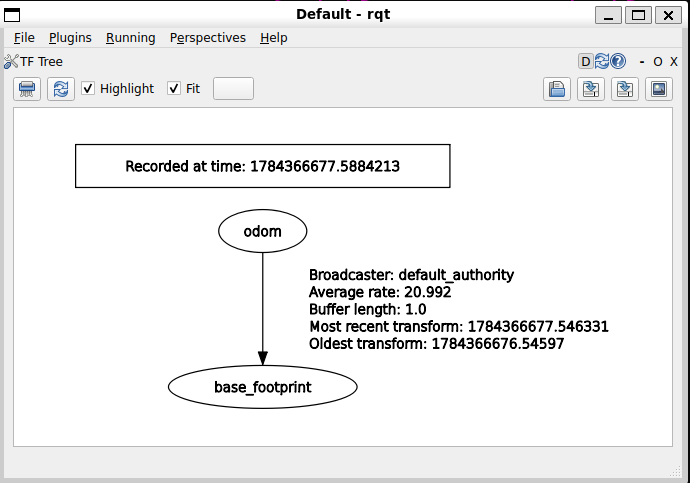

启动Micro-ROS Agent发布/odom话题，然后启动rqt可视化TF变换树
rqt
选择Plugins -> Visualization -> TF Tree，即可看到odom -> base_footprintTF变换树结构。
扩展TF树，发布小车TF变换
新建功能包和URDF文件
cd ~/fishbot_ws/src
ros2 pkg create --build-type ament_python fishbot_description
mkdir -p fishbot_description/urdf
touch fishbot_description/urdf/fishbot.urdf
编辑fishbot_description/urdf/fishbot.urdf，描述小车的URDF模型
<?xml version="1.0"?>
<robot name="fishbot">
<link name="base_footprint" />
<!-- base link -->
<link name="base_link">
<visual>
<origin xyz="0 0 0.0" rpy="0 0 0" />
<geometry>
<cylinder length="0.12" radius="0.10" />
</geometry>
<material name="blue">
<color rgba="0.1 0.1 1.0 0.5" />
</material>
</visual>
</link>
<joint name="base_joint" type="fixed">
<parent link="base_footprint" />
<child link="base_link" />
<origin xyz="0.0 0.0 0.076" rpy="0 0 0" />
</joint>
<!-- laser link -->
<link name="laser_link">
<visual>
<origin xyz="0 0 0" rpy="0 0 0" />
<geometry>
<cylinder length="0.02" radius="0.02" />
</geometry>
<material name="black">
<color rgba="0.0 0.0 0.0 0.5" />
</material>
</visual>
</link>
<joint name="laser_joint" type="fixed">
<parent link="base_link" />
<child link="laser_link" />
<origin xyz="0 0 0.075" rpy="0 0 0" />
</joint>
</robot>
修改fishbot_description/setup.py，添加安装URDF文件
from setuptools import setup
from glob import glob
import os
package_name = 'fishbot_description'
setup(
name=package_name,
version='0.0.0',
packages=[package_name],
data_files=[
('share/ament_index/resource_index/packages',
['resource/' + package_name]),
('share/' + package_name, ['package.xml']),
(os.path.join('share', package_name, 'launch'), glob('launch/*.launch.py')),
(os.path.join('share', package_name, 'urdf'), glob('urdf/**')),
],
install_requires=['setuptools'],
zip_safe=True,
maintainer='root',
maintainer_email='root@todo.todo',
description='TODO: Package description',
license='TODO: License declaration',
tests_require=['pytest'],
entry_points={
'console_scripts': [
"rotate_wheel= fishbot_description.rotate_wheel:main"
],
},
)
在fishbot_bringup中添加launch文件fishbot_bringup/launch/fishbot_bringup.launch.py，启动小车TF变换发布节点
import os
from launch import LaunchDescription
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node
from launch_ros.substitutions import FindPackageShare
def generate_launch_description():
package_name = 'fishbot_description'
urdf_name = "fishbot.urdf"
ld = LaunchDescription()
pkg_share = FindPackageShare(package=package_name).find(package_name)
urdf_model_path = os.path.join(pkg_share, f'urdf/{urdf_name}')
robot_state_publisher_node = Node(
package='robot_state_publisher',
executable='robot_state_publisher',
arguments=[urdf_model_path]
)
joint_state_publisher_node = Node(
package='joint_state_publisher',
executable='joint_state_publisher',
name='joint_state_publisher',
arguments=[urdf_model_path],
output='screen',
)
fishbot_bringup_node = Node(
package='fishbot_bringup',
executable='fishbot_bringup',
name='fishbot_bringup',
output='screen',
)
ld.add_action(joint_state_publisher_node)
ld.add_action(robot_state_publisher_node)
ld.add_action(fishbot_bringup_node)
return ld
该launch文件整合了之前的odom发布，启动了三个节点：
joint_state_publisher：发布小车关节状态robot_state_publisher：根据URDF模型发布小车TF变换fishbot_bringup：订阅/odom话题并发布odom->base_footprintTF变换
修改fishbot_bringup/CMakeLists.txt，安装launch文件
install(
DIRECTORY launch
DESTINATION share/${PROJECT_NAME}
)
在~/fishbot_ws中编译运行
colcon build
source install/setup.bash
ros2 launch fishbot_bringup fishbot_bringup.launch.py
在rqt中可视化TF变换树，可以看到扩展的TF树odom->base_footprint->base_link->laser_link
SLAM-TOOLBOX建图
安装SLAM-TOOLBOX与nav2_map_server功能包
sudo apt install ros-$ROS_DISTRO-slam-toolbox
sudo apt install ros-$ROS_DISTRO-nav2-map-server
启动机器人步骤，省略环境设置：
- 启动TF变换：
ros2 launch fishbot_bringup fishbot_bringup.launch.py
- 启动Micro-ROS Agent
ros2 run micro_ros_agent micro_ros_agent udp4 --port 8888
- 启动雷达
注释掉fishbot_ws/src/ydlidar_ros2/launch/ydlidar_launch.py中的tf2_node节点，因为其与URDF模型发布的TF变换冲突。
def generate_launch_description():
...
return LaunchDescription([
params_declare,
driver_node,
#tf2_node, ----注释这一行就可以了-----
])
重新编译ydlidar_ros2，启动雷达驱动
cd ~/fishbot_ws
colcon build
source install/setup.bash
# 启动前文所述虚拟串口脚本
python3 virt_serial.py
# 启动雷达驱动
ros2 launch ydlidar ydlidar_launch.py
- 启动SLAM-TOOLBOX建图
新建一个配置文件slam_param.yaml:
slam_toolbox:
ros__parameters:
use_sim_time: false # 是否使用仿真时间，真实机器人必须设置为false
odom_frame: odom
map_frame: map
base_frame: base_footprint
scan_topic: /scan
transform_timeout: 0.2 # 获取TF坐标变换时的超时时间
map_update_interval: 2.0 # 每隔 2 秒，算法会将更新后的地图发布到 /map 主题
启动异步建图
ros2 launch slam_toolbox online_async_launch.py params_file:=slam_param.yaml

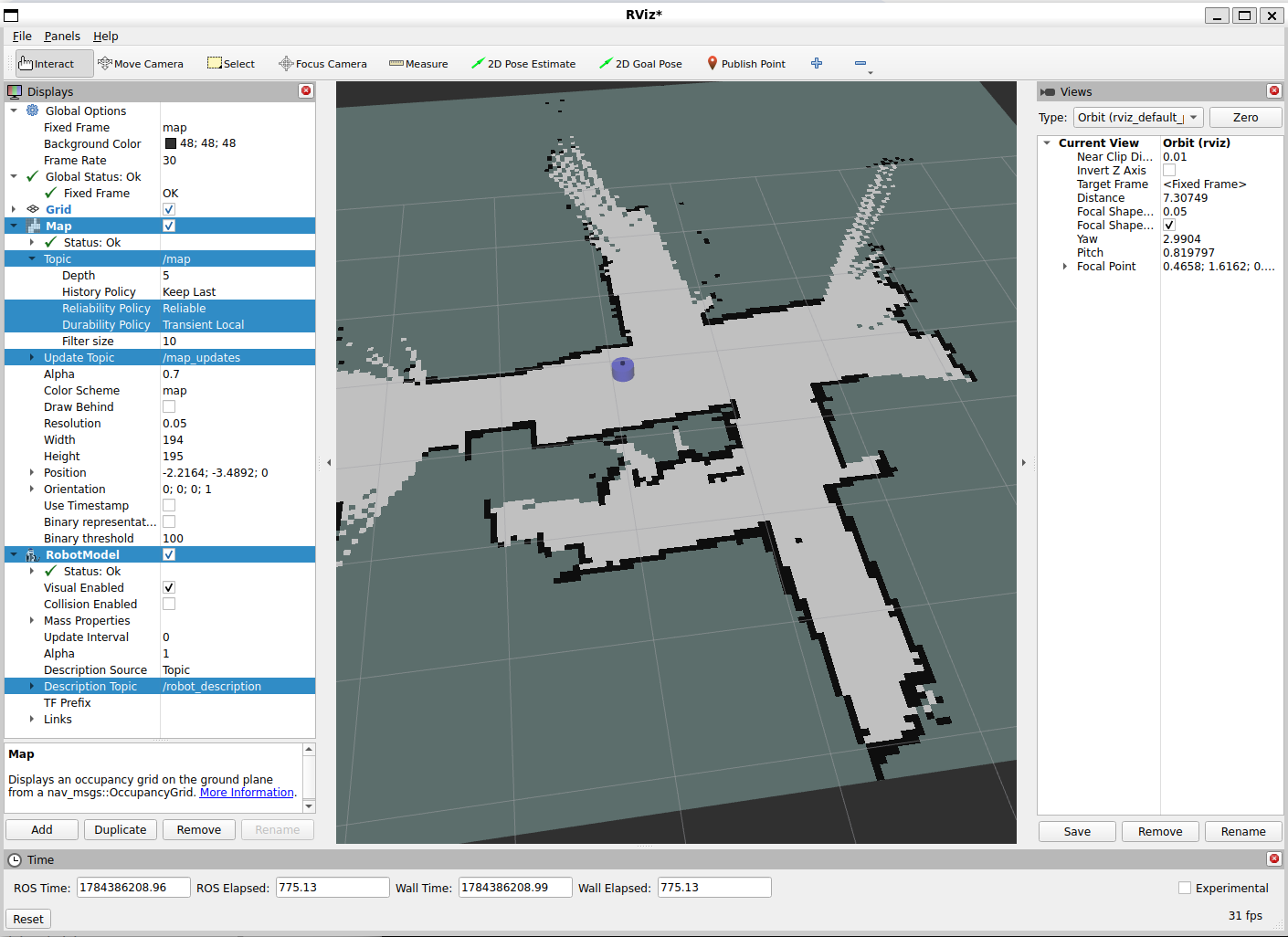

- 可视化建图
启动rviz2，按By topic方式添加 /map 的 Map 插件，为了清晰显示机器人当前位置，添加RobotModel插件，将Description Topic设置为/robot_description
rviz2
启动键盘控制程序，一定要按x减速到0.02左右再移动，因为小车重心不稳，且建图需要缓慢移动
ros2 run teleop_twist_keyboard teleop_twist_keyboard
耐心扫描，如前所述，map并非平滑更新，而是隔一段时间后跳变
注意事项：
- 确保话题
/scan、/odom正常发布，使用ros2 topic echo查看 - 确保TF变换树正确，可使用
rqt插件查看，odom->base_footprint->base_link->laser_link，map->odom由SLAM-TOOLBOX发布
- 保存地图
使用map_saver_cli，从topic map保存名为fishbot_map的地图
ros2 run nav2_map_server map_saver_cli -t map -f fishbot_map
当前路径下会生成两个文件：fishbot_map.pgm 和 fishbot_map.yaml
导航
使用Nav2功能包进行导航，安装：
sudo apt install ros-$ROS_DISTRO-navigation2
sudo apt install ros-$ROS_DISTRO-nav2-bringup
nav2-bringup提供了nav2默认配置文件，创建一个功能包用来管理launch与配置文件
cd ~/fishbot_ws/src
ros2 pkg create fishbot_navigation2
cd fishbot_navigation2
# 配置文件
mkdir config
# launch文件
mkdir launch
# 地图文件
mkdir maps
Nav2配置
复制默认nav2配置文件到config目录下
cp /opt/ros/$ROS_DISTRO/share/nav2_bringup/params/nav2_params.yaml config/
调小nav2配置文件中costmap的机器人半径参数，以便在窄通道运行：
local_costmap:
local_costmap:
ros__parameters:
...
robot_radius: 0.08
global_costmap:
global_costmap:
ros__parameters:
...
robot_radius: 0.08
更多配置参看nav2 configuration
地图
将扫描保存的地图文件fishbot_map.pgm和fishbot_map.yaml拷贝到fishbot_navigation2/map/目录下。
Launch文件
编写fishbot_navigation2/launch/navigation2.launch.py，启动导航
import os
import launch
import launch_ros
from ament_index_python.packages import get_package_share_directory
from launch.launch_description_sources import PythonLaunchDescriptionSource
def generate_launch_description():
# 获取与拼接默认路径
fishbot_navigation2_dir = get_package_share_directory(
'fishbot_navigation2')
nav2_bringup_dir = get_package_share_directory('nav2_bringup')
rviz_config_dir = os.path.join(
nav2_bringup_dir, 'rviz', 'nav2_default_view.rviz')
# 创建 Launch 配置
use_sim_time = launch.substitutions.LaunchConfiguration(
'use_sim_time', default='false')
map_yaml_path = launch.substitutions.LaunchConfiguration(
'map', default=os.path.join(fishbot_navigation2_dir, 'maps', 'fishbot_map.yaml'))
nav2_param_path = launch.substitutions.LaunchConfiguration(
'params_file', default=os.path.join(fishbot_navigation2_dir, 'config', 'nav2_params.yaml'))
return launch.LaunchDescription([
# 声明新的 Launch 参数
launch.actions.DeclareLaunchArgument('use_sim_time', default_value=use_sim_time,
description='Use simulation (Gazebo) clock if true'),
launch.actions.DeclareLaunchArgument('map', default_value=map_yaml_path,
description='Full path to map file to load'),
launch.actions.DeclareLaunchArgument('params_file', default_value=nav2_param_path,
description='Full path to param file to load'),
launch.actions.IncludeLaunchDescription(
PythonLaunchDescriptionSource(
[nav2_bringup_dir, '/launch', '/bringup_launch.py']),
# 使用 Launch 参数替换原有参数
launch_arguments={
'map': map_yaml_path,
'use_sim_time': use_sim_time,
'params_file': nav2_param_path}.items(),
),
launch_ros.actions.Node(
package='rviz2',
executable='rviz2',
name='rviz2',
arguments=['-d', rviz_config_dir],
parameters=[{'use_sim_time': use_sim_time}],
output='screen'),
])
该launch文件整合了nav2-bringup的bringup_launch.py，并使用其默认rviz2配置文件nav2_default_view.rviz进行rviz可视化
修改CMakeLists.txt，安装launch、配置文件、地图
install(DIRECTORY
launch
config
maps
DESTINATION share/${PROJECT_NAME}
)
构建以进行文件拷贝
cd ~/fishbot_ws
colcon build
启动导航
启动机器人：
# TF变换发布
ros2 launch fishbot_bringup fishbot_bringup.launch.py
# Micro-ROS Agent
ros2 run micro_ros_agent micro_ros_agent udp4 --port 8888
# 雷达驱动
python3 virt_serial.py
ros2 launch ydlidar ydlidar_launch.py
确保/scan、/odom等话题数据正常后，启动导航（可能出现错误）：
colcon build
source install/setup.bash
ros2 launch fishbot_navigation2 navigation2.launch.py
踩坑：
- 不知为何，较新版本的nav2
amcl节点订阅/scan时使用的QoS策略为Reliable，与雷达发布使用best effort策略冲突
# 错误情况：看到amcl节点使用不兼容的QoS策略
ros2 topic info /scan --verbose
缓解方法：Reliable的的的订阅者不能匹配best effort的发布者，但反之可以，所以可以修改雷达发布的/scan话题QoS策略为Reliable，这样仍可匹配其它订阅该话题的best effort节点。
ydlidar_ros2/src/ydlidar_node.cpp：
// auto laser_pub = node->create_publisher<sensor_msgs::msg::LaserScan>("scan", rclcpp::SensorDataQoS());
rclcpp::QoS scan_qos(rclcpp::KeepLast(10));
scan_qos.reliable();
auto laser_pub = node->create_publisher<sensor_msgs::msg::LaserScan>("scan", scan_qos);
- nav2较新版本发布
/cmd_vel时使用的是geometry_msgs/msg/TwistStamped类型，而小车订阅的/cmd_vel消息类型为geometry_msgs/msg/Twist
# 错误情况：看到两种消息类型混杂
ros2 topic info /cmd_vel --verbose
缓解有两种方法
1. 升级底层驱动fishbot_motion_control订阅的消息类型
2. 修改nav2配置，把发布TwistStamped类型至/cmd_vel的节点改为发布至/cmd_vel_nav，再转接发布Twist消息到/cmd_vel
这里使用第二种办法，修改nav2配置：
collision_monitor:
ros__parameters:
base_frame_id: "base_footprint"
odom_frame_id: "odom"
cmd_vel_in_topic: "cmd_vel_smoothed"
cmd_vel_out_topic: "cmd_vel_nav" # 改为发布命令至/cmd_vel_nav话题
简单的python转换脚本cmd_vel_converter.py：
import rclpy
from rclpy.node import Node
from geometry_msgs.msg import TwistStamped, Twist
class CmdVelConverter(Node):
def __init__(self):
super().__init__('cmd_vel_converter')
# 订阅 TwistStamped 话题
self.subscription = self.create_subscription(
TwistStamped,
'/cmd_vel_nav',
self.listener_callback,
10)
# 发布 Twist 话题
self.publisher_ = self.create_publisher(
Twist,
'/cmd_vel',
10)
def listener_callback(self, msg: TwistStamped):
# 提取 TwistStamped 中的 twist 部分
twist_msg = msg.twist
# 发布纯 Twist 消息
self.publisher_.publish(twist_msg)
self.get_logger().debug('Converted TwistStamped to Twist')
def main(args=None):
rclpy.init(args=args)
node = CmdVelConverter()
try:
rclpy.spin(node)
except KeyboardInterrupt:
pass
finally:
node.destroy_node()
rclpy.shutdown()
if __name__ == '__main__':
main()
最终启动导航命令
最佳实践是整合成单个launch，这里仅作原理性演示
启动机器人：
# 虚拟串口，雷达转接
python3 virt_serial.py
# 发布TF变换：odom->base_footprint->base_link->laser_link
ros2 launch fishbot_bringup fishbot_bringup.launch.py
# ROS信息相关的Agent
ros2 run micro_ros_agent micro_ros_agent udp4 --port 8888
# 雷达驱动
ros2 launch ydlidar ydlidar_launch.py
# /cmd_vel_nav转接/cmd_vel
python3 cmd_vel_converter.py
启动导航：
ros2 launch fishbot_navigation2 navigation2.launch.py

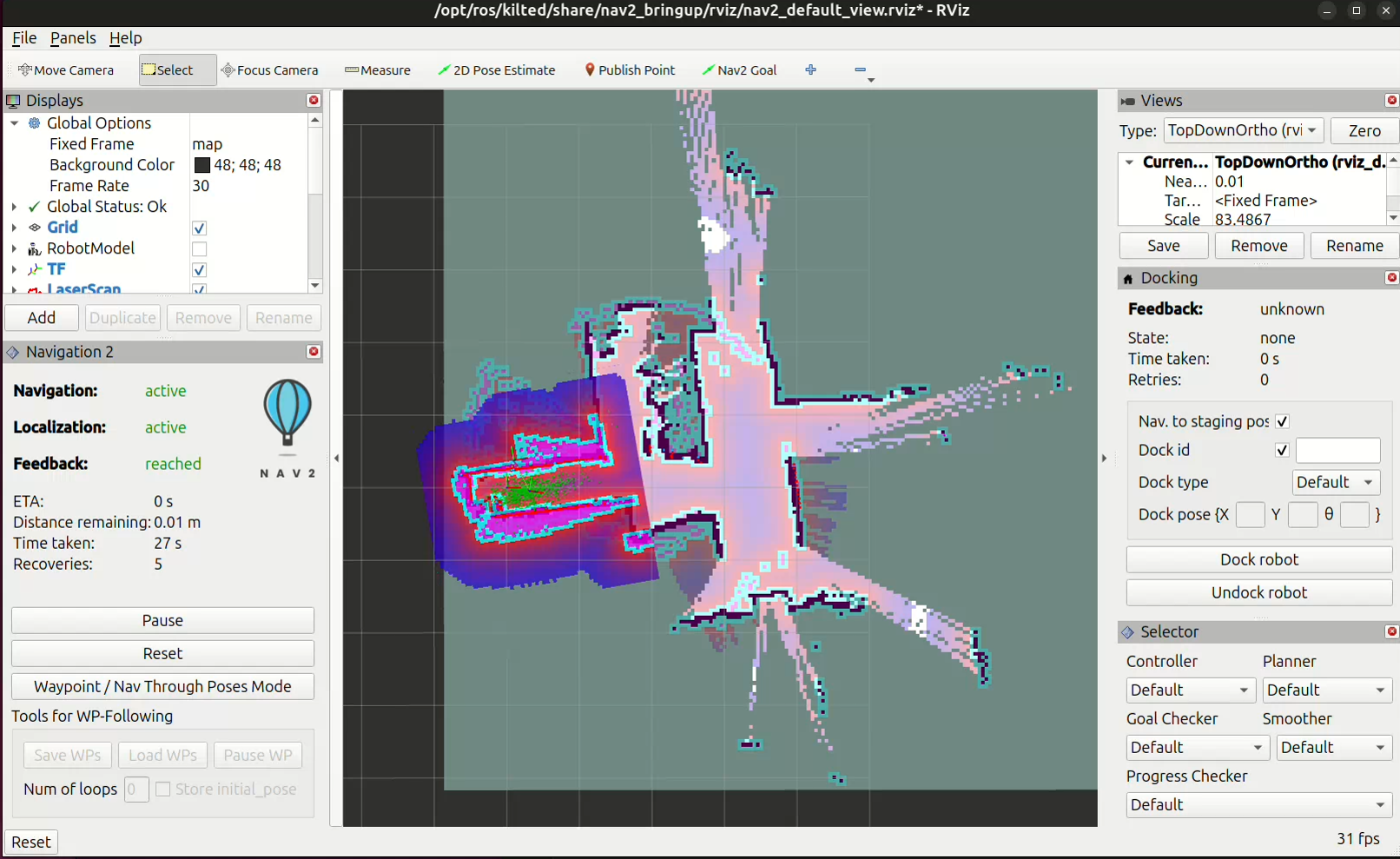

使用2D Pose Estimate设定初始位姿后，rviz2上显示costmap与雷达点阵图。

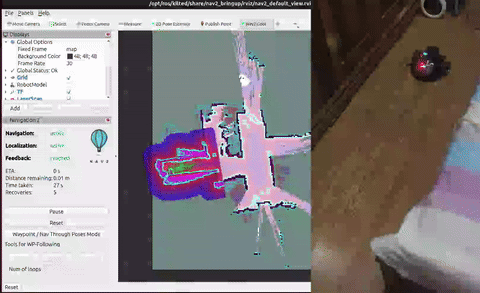

使用Nav2 Goal设定方向后，机器人自动计算路线并导航。
留言
